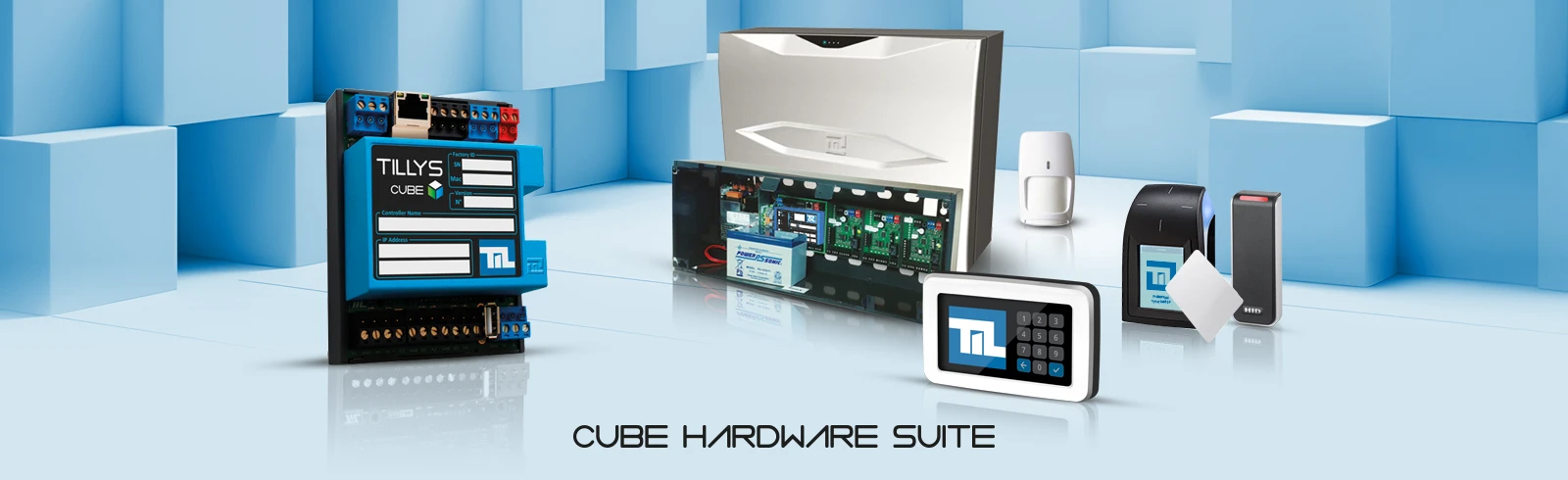

CUBE hardware suite

3 Enciphered RS485 buses
48 modules (16 per bus)
24 Access control readers (8 per bus)
24 Intrusion operation keypads (8 per bus)
Up to 600,000 credentials
128 weekly time schedules
32 alarm groups
Up to 256 inputs or 128 outputs per bus

TACTILLYS CUBE : Intrusion operation on touchscreen
MLP2: Access control
2 Transparent readers
MLIO16: Intrusion and BMS
16 configurable inputs or outputs
EQUILOCK: Intrusion
64 sensors in bus topology
MLGTB: Technical management
2 4-20 mA + 2 0-10 V inputs, 4 counter or digital inputs, 4 relay outputs
MLR8: Extension 8 relays

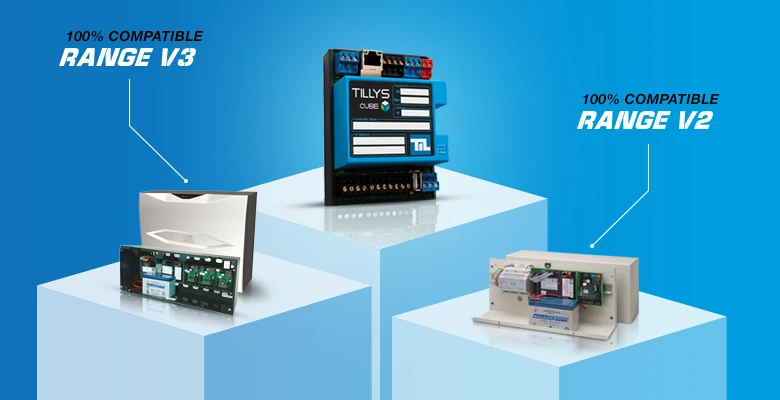

Upward compatibility

The TILLYS CUBE controller is fully compatible with specialized modules from the 2 previous generations: V3 (NG) bus with MLx specialized modules or V2 bus with MDx specialized modules.
Buses of different generations can be mixed on the same controller.

High security ANSSI

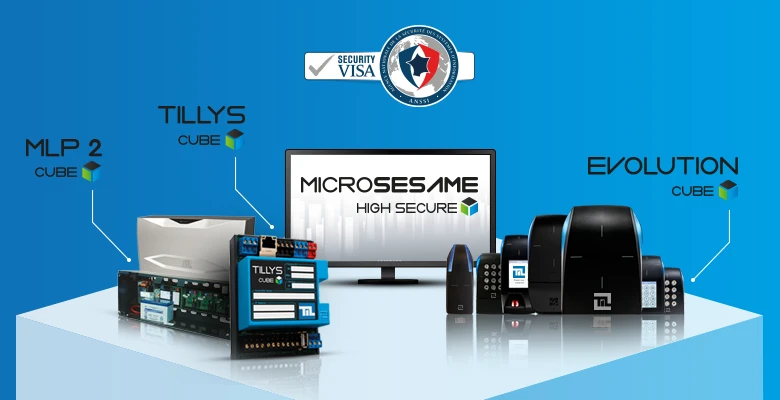

Combined with EVOLUTION transparent readers and MICROSESAME HIGH SECURE, the TILLYS CUBE controller and MLP2 modules form part of an ANSSI-certified architecture.
All communications (bus and Network) are encrypted. The MLP2 module protects encryption keys in an EAL5+-certified SAM/HSM safe.

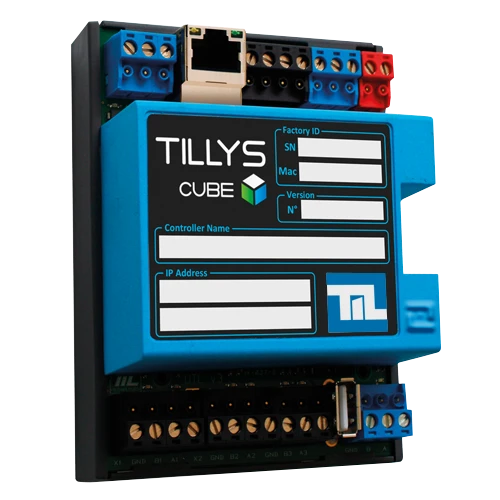

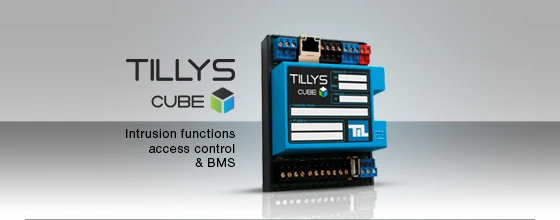

TILLYS CUBE

Multifunction controller

For access control, intrusion and BMS (pdf - 1,017 Ko)

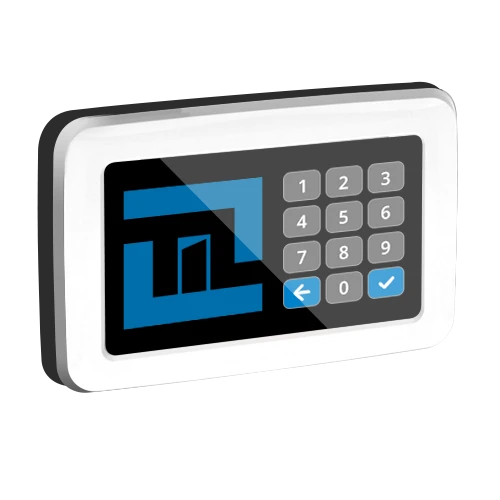

TACTILLYS CUBE

Remote keyboard for TILLYS CUBE, NG and V2

(pdf - 1,7 Mo)

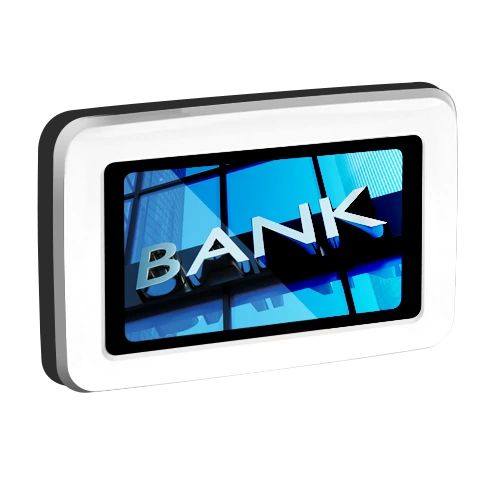

VAULTYS CUBE

Remote keyboard for safe management

For banking operations (pdf - 1,2 Mo)

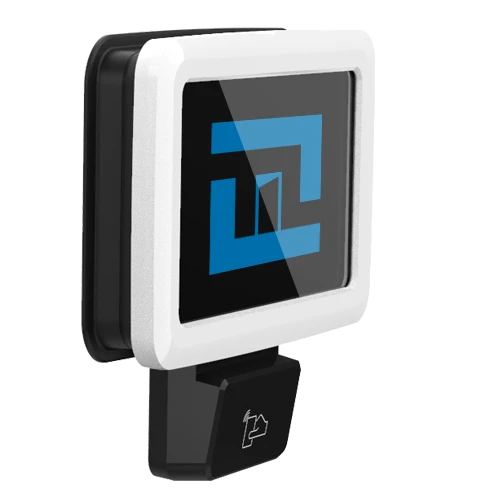

CARDIGO CUBE

Badge validation and activation screen

For access control (pdf - 1,2 Mo)

MLP2 CUBE

Specialist module for access control

Management of 2 readers (pdf - 1,2 Mo)

MLP2 OSS CUBE

OSS offline reader and updater module

Management of 2 readers (pdf - 1,3 Mo)

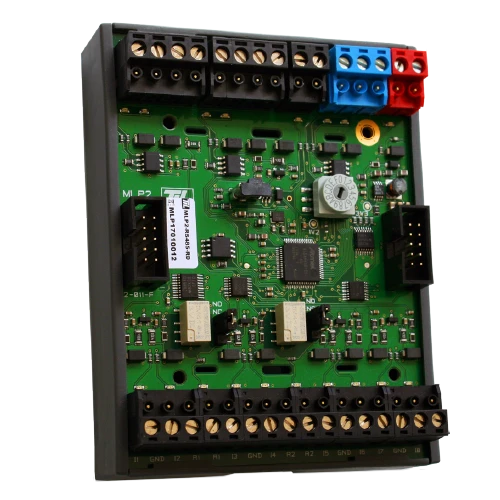

MLP2 SAM CUBE

MPL2 module with slot for SAM AV2 card-FR

Management of 2 readers (pdf - 1,4 Mo)

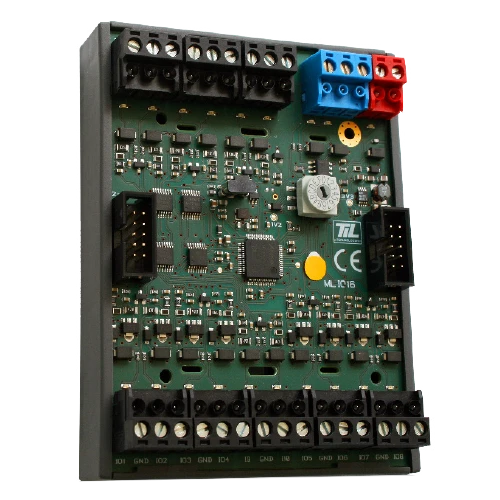

MLIO16 CUBE

Specialised Intrusion & BMS module

Management of 16 inputs/outputs (pdf - 1,0 Mo)

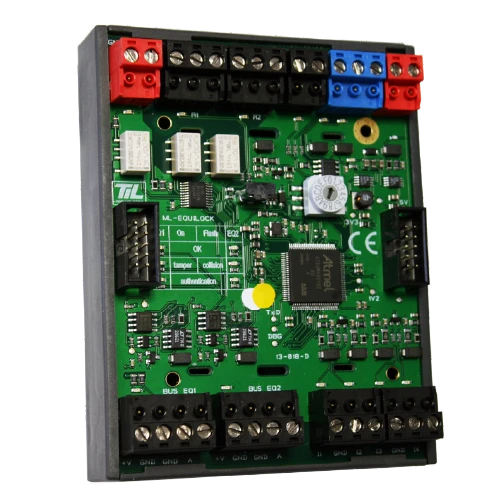

MLCK CUBE

EQUILOCK specialised intrusion module

Management of 64 sensors on bus (pdf - 1,2 Mo)

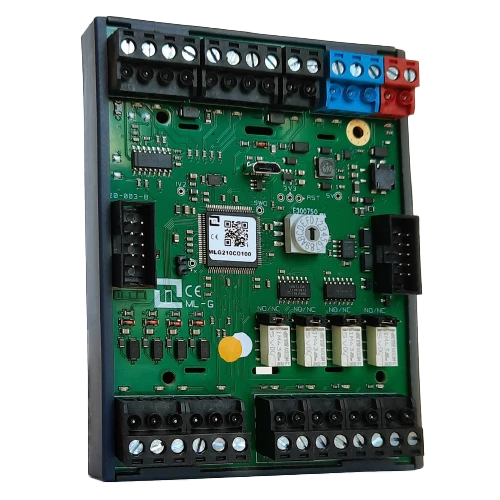

MLGTB CUBE

Specialised BMS module

Acquisition de mesures analogiques et comptages (pdf - 1,1 Mo)

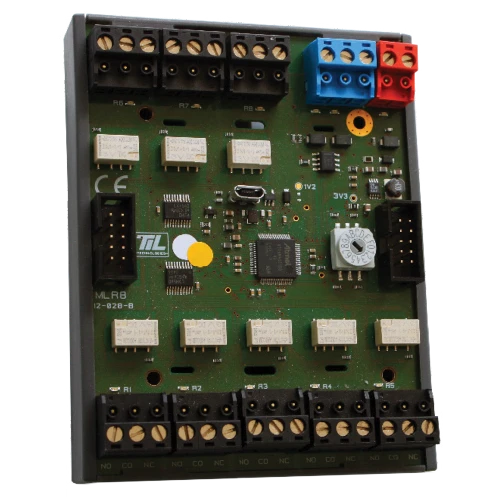

MLR8 CUBE

Specialised module 8 relays

Management of 8 additional relay outputs (pdf - 1,1 Mo)
